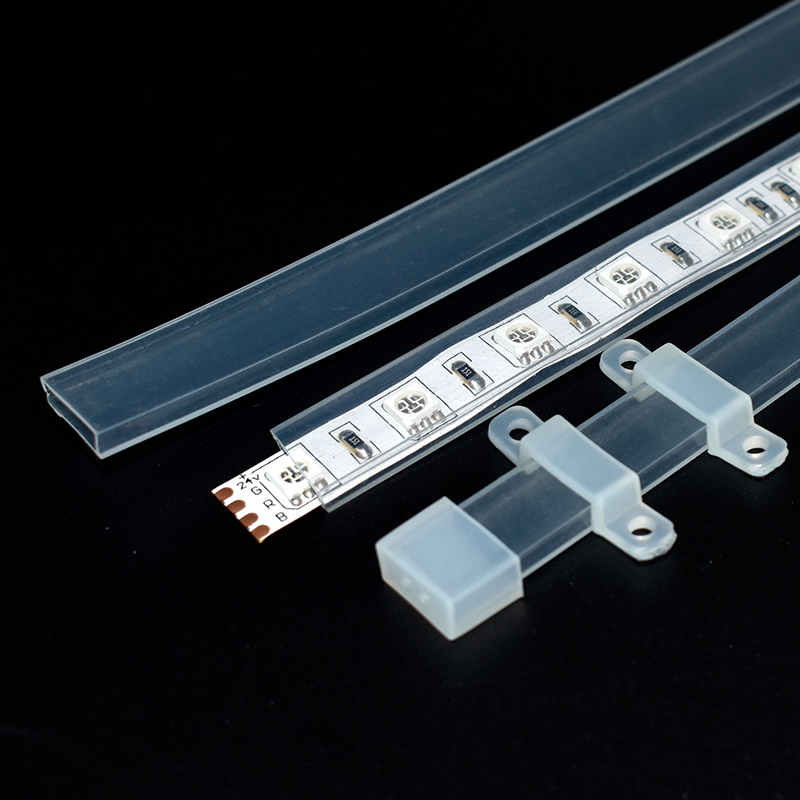

LED Strip Silicone Tube | 5-20mm Width Available

Process Introduction

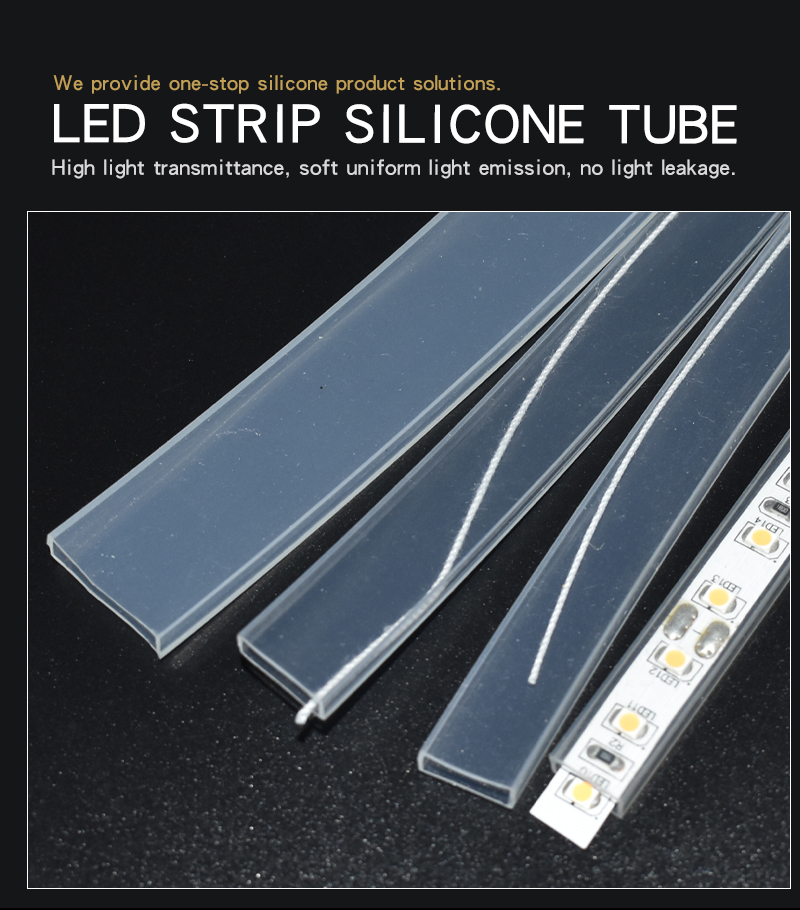

Our LED transparent silicone tube is manufactured from high-purity eco-friendly silicone raw materials, adopting integrated precision extrusion molding and stable platinum vulcanization process. The whole product is formed with seamless integrated structure, with uniform wall thickness, smooth surface and no bubbles or impurities. We provide full size specifications from 5mm to 20mm, which perfectly adapt to mainstream low-voltage flexible LED strip lights. Two optional structural styles (regular wire type and clamped wire type) are available, with stable and consistent molding quality in every batch to ensure perfect matching with LED strips.

Product Features

Equipped with high-transparency light-transmitting structure, this silicone sleeve achieves high light transmittance and uniform light output with no light loss or dark shadows. It owns excellent airtight sealing performance, full waterproof and dustproof properties to effectively protect internal LED circuits from water erosion. With standard 70±5 Shore A hardness, it features outstanding flexibility and free bendability, supporting arbitrary cutting and splicing without cracking or deformation after repeated bending. Supported by ultra-wide temperature resistance from -40℃ to 220℃, it maintains stable performance in extreme cold and high-temperature environments, with superior UV resistance, anti-yellowing and aging resistance for long service life.

Application Scope

With outstanding environmental adaptability, our LED transparent silicone tube is suitable for both indoor and outdoor large-scale engineering projects. It is widely applied to diversified scenarios including home decoration, commercial spaces, architectural landscapes and vehicle decoration. It serves as an ideal protective casing solution for LED strip lights, custom neon sign making, commercial advertising lighting, architectural outline decoration, home atmosphere lighting (cabinet lights, corridor lights) and all embedded protection of LED SMD PCB strip light projects.

Q: Is this flat silicone tube suitable for all LED strip lights?
A: We provide full size range from 5mm to 20mm width. It fits most low voltage flexible LED strips. You only need to match strip width with tube inner size.

Q: What is the difference between regular type and clamped type tube?

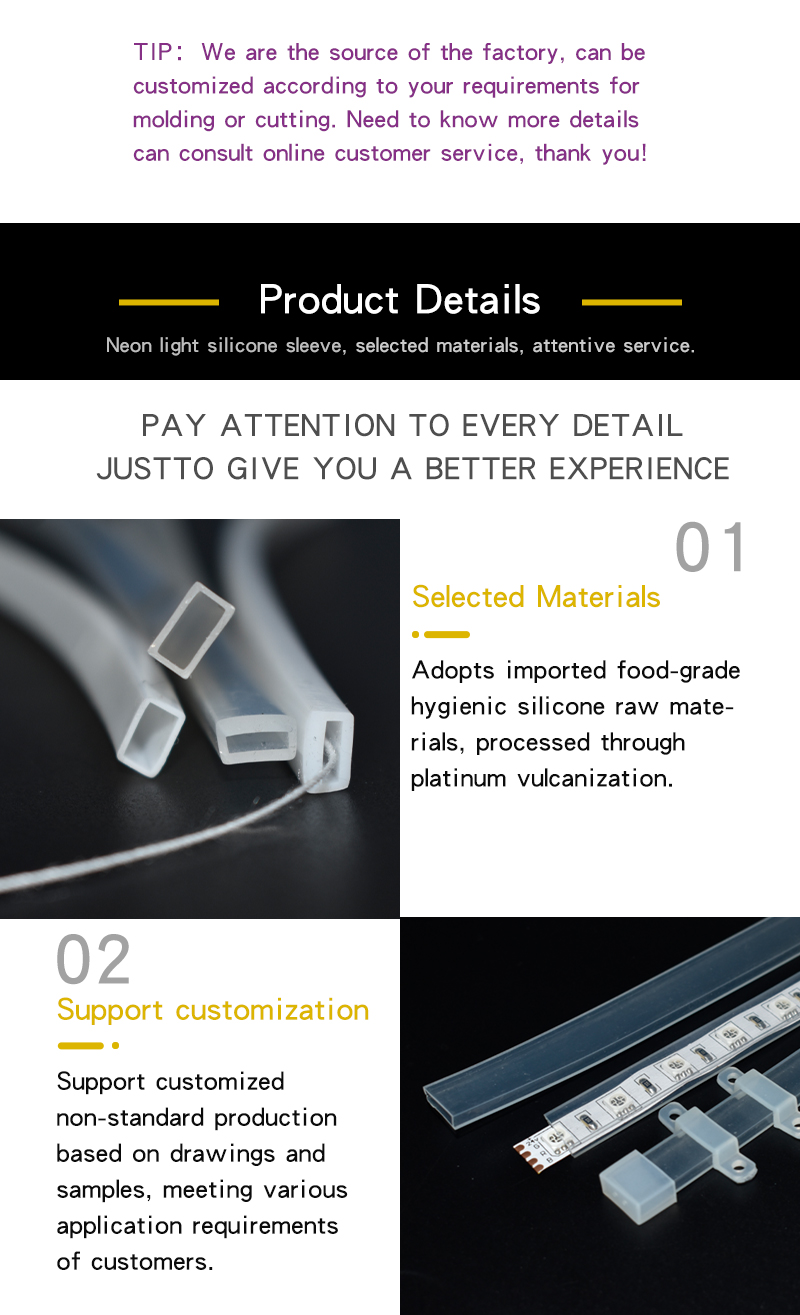

A: Regular type has simple hollow structure with built-in wire. Clamped type owns inner slot structure for tighter strip fixation. It avoids strip displacement during long-term outdoor use.

Q: Does your product support customized size and special parameters?
A: As original extrusion factory, we fully support custom services. We can adjust inner diameter, outer diameter, wall thickness, hardness and color per your project demands.

Q: Is the transparent silicone tube anti-yellowing for outdoor long use?
A: It adopts high weather-resistant raw silicone material. It resists UV radiation, aging and yellowing effectively. It keeps transparent clarity under years of outdoor exposure.

Q: What is the operating temperature range of this LED silicone tube?
A: Our tube owns wide temperature adaptability from -40℃ to 220℃. It keeps stable physical property in extreme cold and high temperature environments.

Q: Do you provide matching accessories like plugs and mounting clips?
A: Yes. We supply matching sealing end plugs and fixed mounting clips. All accessories match our tube size series perfectly for complete sealing installation.

Q: Are your silicone materials eco-friendly with international certifications?
A: We use 100% pure platinum vulcanized silicone. Material is non-toxic and odorless. All products pass SGS, RoHS global safety material certifications.

Q: Can I get free samples for size test before bulk order?
A: We support free sample supply for client size matching test. You only need to bear the international express freight cost.

Q: Is this tube waterproof for outdoor direct rain environment?
A: Integrated extrusion molding achieves full sealed waterproof performance. It blocks rainwater, moisture and water erosion perfectly to protect internal LED circuits.

Q: How about your bulk production lead time and wholesale supply capacity?
A: Our daily extrusion production capacity meets large bulk orders. Regular goods finish production within 7 working days. Custom mold order takes 10-15 working days.
