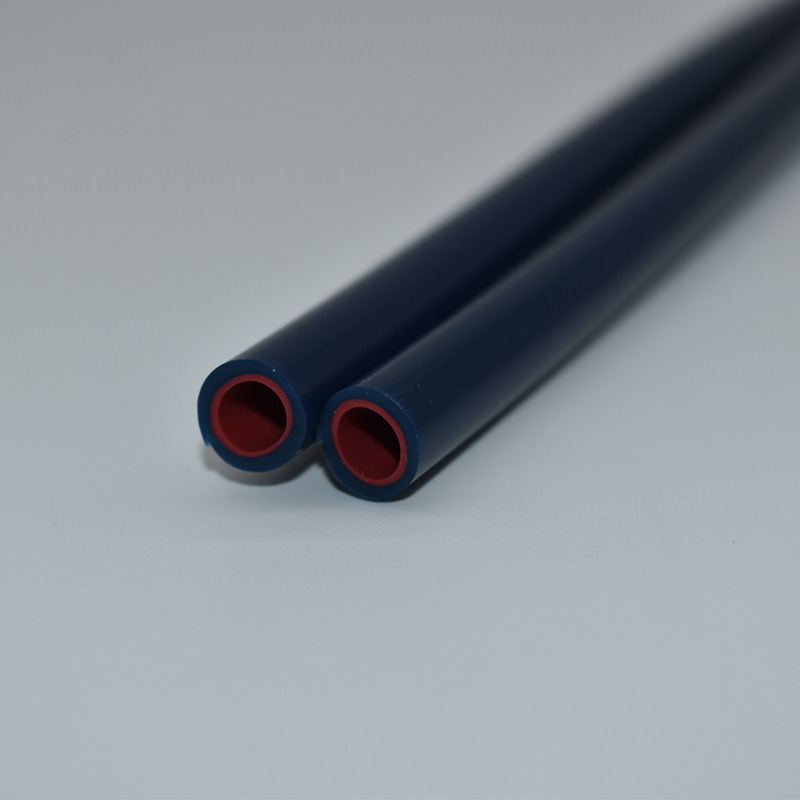

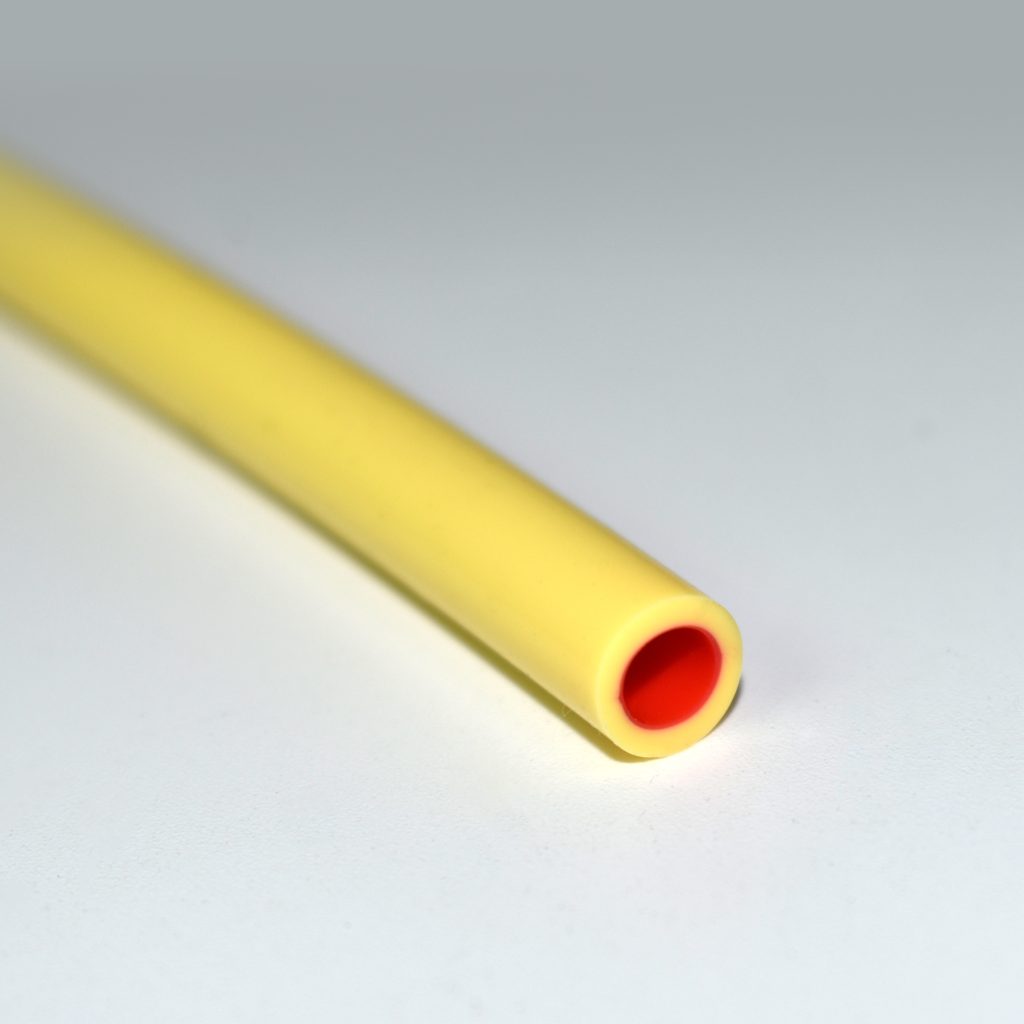

Fluorosilicone Tube

Fluorosilicone tubes are mainly made from fluorosilicone rubber (FVMQ). After mixing and extrusion, they are shaped through high-temperature primary vulcanization, followed by secondary vulcanization to remove residues and improve oil resistance, chemical resistance and thermal stability.

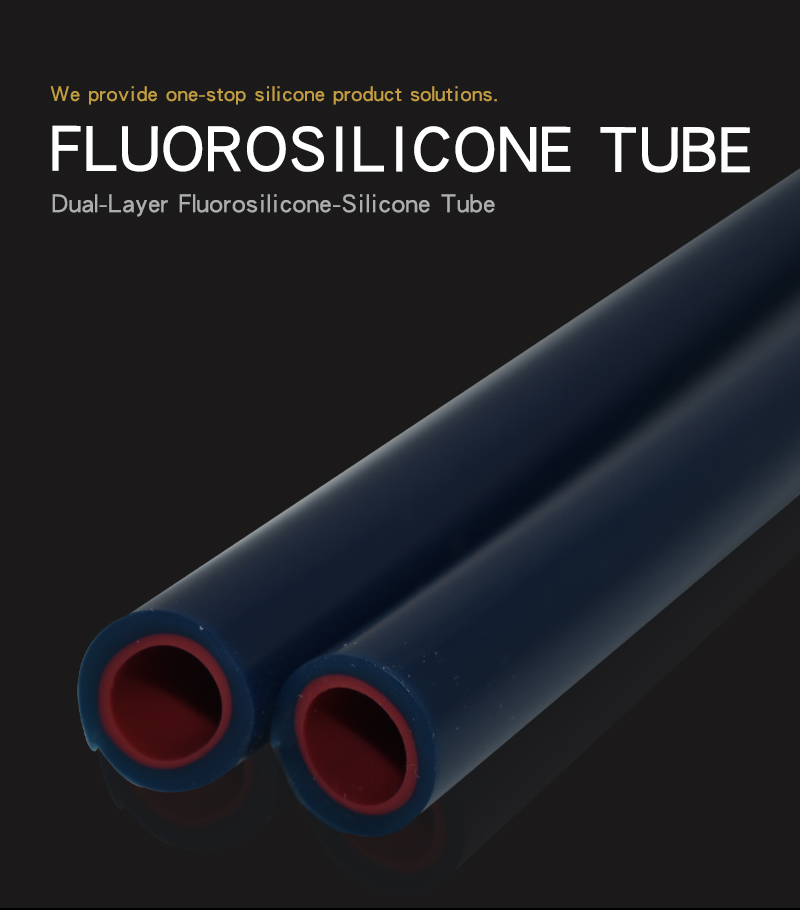

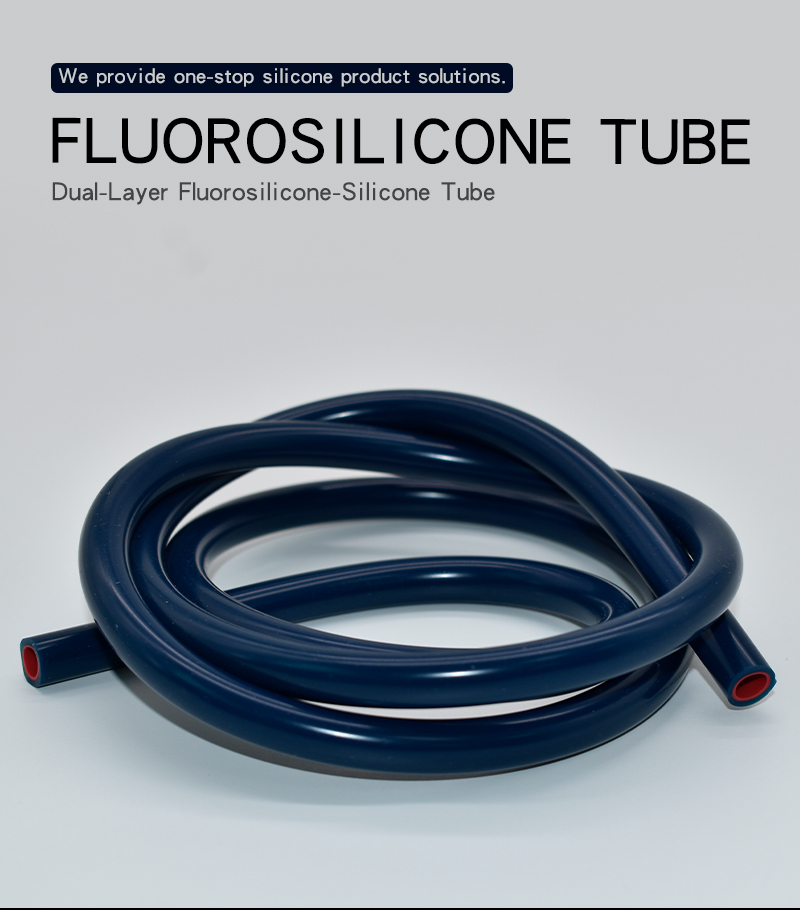

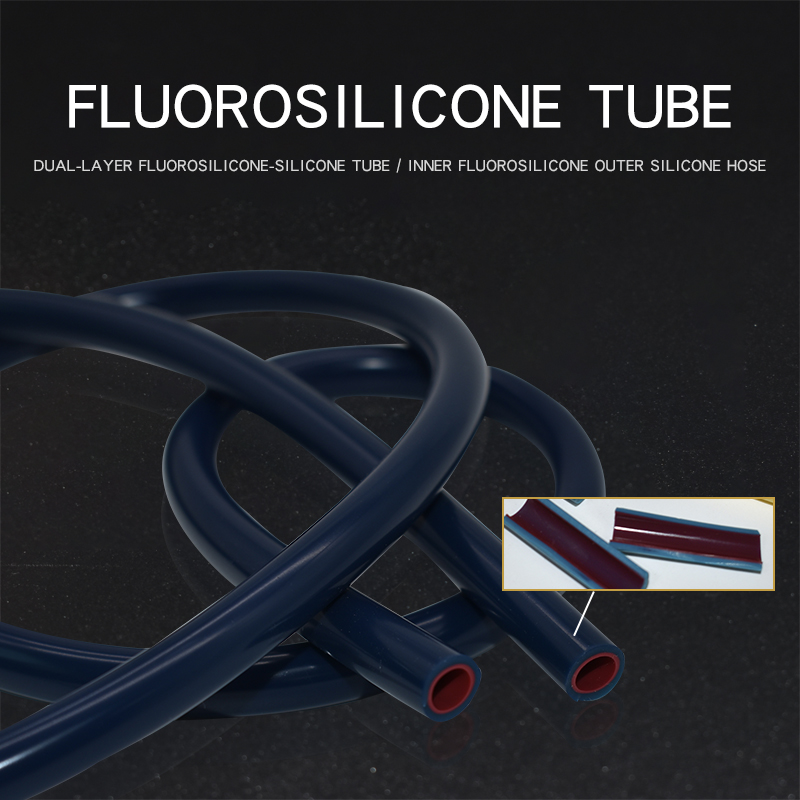

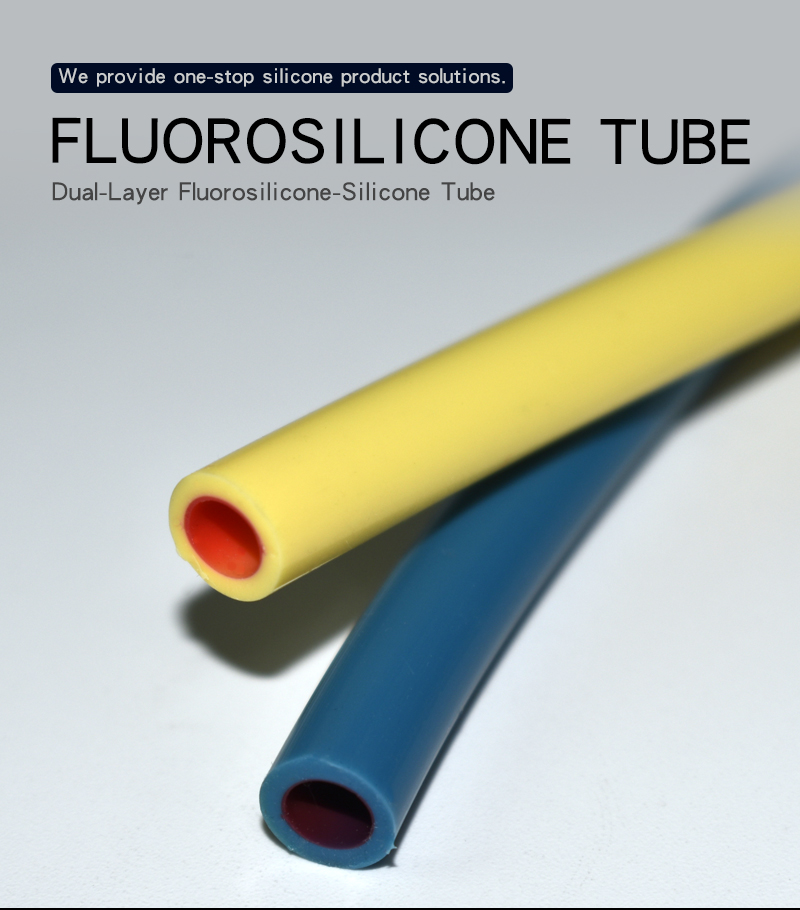

For composite tubes with fluorosilicone inside and silicone outside, a double-layer co-extrusion process is adopted. The inner fluorosilicone layer and outer ordinary silicone layer are extruded simultaneously and co-vulcanized as a whole, combining medium resistance with high elasticity.

Fluorosilicone tubes are widely used in aerospace, automotive, chemical, medical and food industries, capable of conveying various media under harsh conditions requiring oil resistance, chemical corrosion resistance and high & low temperature resistance.

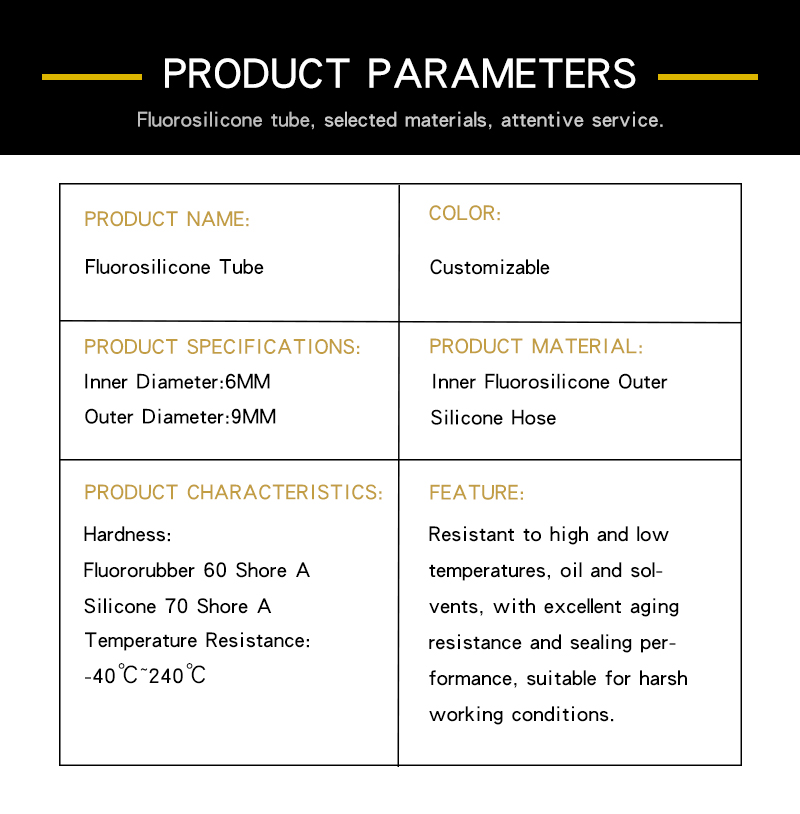

Properties of Fluorosilicone Tube

It combines the high and low temperature resistance of silicone with the oil, solvent and acid-alkali resistance of fluororubber, featuring anti-aging, good sealing and low permeability, and can be used for a long time in harsh environments.

Q: What is fluorosilicone tube made of?
A: It is mainly made of fluorosilicone rubber (FVMQ), combining the advantages of silicone and fluororubber.

Q:What are the key properties of fluorosilicone tube?
A: Resistant to high and low temperatures, oil, solvents, acids and alkalis, with good anti-aging and sealing performance, suitable for harsh working conditions.

Q: What production process is used for fluorosilicone tube?
A: It undergoes mixing, extrusion, primary vulcanization for shaping and secondary vulcanization for performance improvement. Composite tubes adopt double-layer co-extrusion for integrated molding.

Q: What industries are fluorosilicone tubes mainly used in?
A: Widely used in aerospace, automotive, chemical, medical, food and other industries.

Q: What is the difference between fluorosilicone tube and ordinary silicone tube?
A: Ordinary silicone tube is not resistant to oil and solvents, while fluorosilicone tube has significantly better oil and chemical corrosion resistance.

Q: What are the advantages of fluorosilicone inner & silicone outer composite tube?
A: The inner layer is resistant to oil and media, the outer layer is soft and highly elastic, with easy installation and balanced comprehensive performance.

Q: What media can fluorosilicone tube convey?
A: It can convey oil, organic solvents, weak acids and alkalis, food and medical fluids, etc.

Q: What is the operating temperature range of fluorosilicone tube?
A: It can be used for a long time in the environment of -60℃ ~ 200℃.
